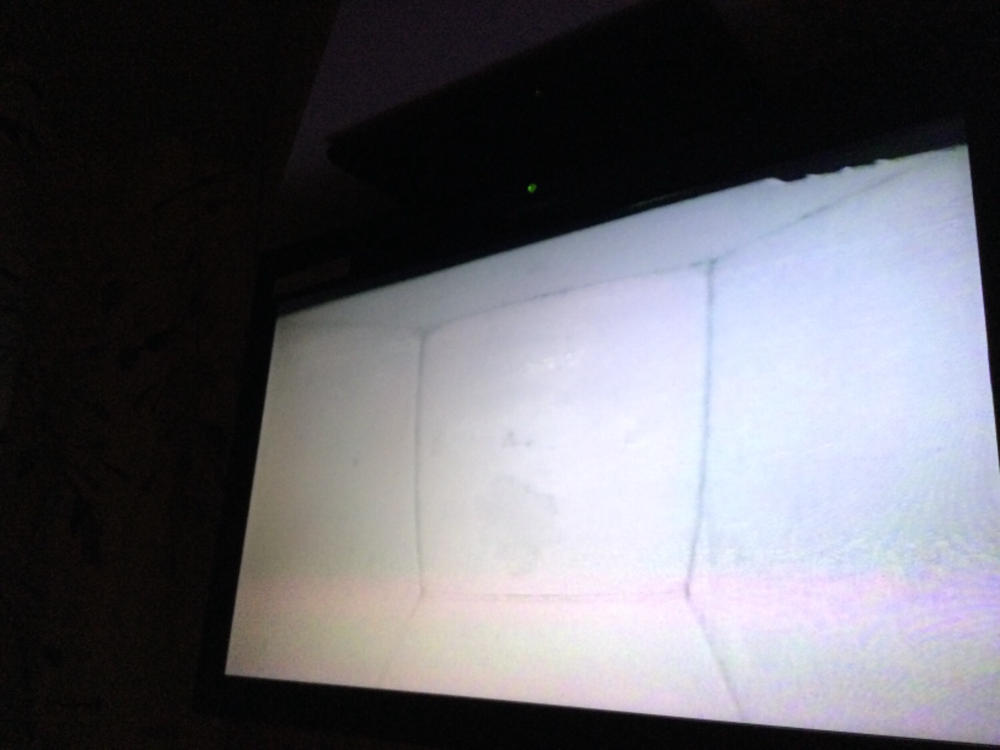

Watch on your TV
Simply connect the receiver to a TV or monitor using the included cable to begin viewing live footage.
Tiny Size
The compact size of the camera leaves plenty of space for nesting birds and won’t disturb any residents.
Robust 700 TV Line Video
Our improved imaging sensor captures footage at the highest resolution of any wireless bird box camera on the market.
Up to 30m Wireless Range
Install the camera in your garden and use the included receiver to pick up video without the need for extra video cables. Please note that solid obstructions such as walls, trees and windows will reduce the range.
Wireless Channel Selector
Physical switches allow you to change which wireless channel the camera broadcasts on. This lets you quickly adjust your system if you encounter any signal interference.
12V Connection
Allows you to run power up to 50m and is compatible with all of our cables and accessories.
Infrared Cut
Built-in IR cut gives true to life colour images in the daytime and crisper black and white night-time images.
Night Vision
Invisible infrared LEDs emit no glow and keep recording in dark bird boxes without disturbing the birds.
Wide-angle Lens
With its wide-angle lens, the camera has a huge field of view. It’s designed for use in enclosed spaces which means more of the bird box fits in the frame.
Adjustable Focus
The lens can be manually focussed, so you can fine-tune the picture.
Our Bird Box Camera Kit with wireless transmission is a super-compact camera that fits neatly inside your bird box without disturbing any resident wildlife. The high quality camera connects wirelessly to the receiver, which can be connected to a TV up to 30 metres away†. This is a really straightforward way to begin watching nesting birds from the comfort of your living room.
For such a tiny camera it has some impressive features including manual focussing which means you get sharp, clear images; a wide-angle lens that lets you see the entire inside of the bird box; and specially designed night vision LEDs so the camera can record inside a dark bird box without disturbing the birds. You won’t miss any action.
The wireless bird box camera receiver has 4 channels so you can quickly adjust your system if you encounter any signal interference and improve the video quality.
†The range will be reduced if there are too many obstructions such as walls or thick bushes in the way.
Get amazing daytime colour images
In the dark, the camera's night vision mode ensures 24/7 vision but it produces black-and-white images. To ensure you get the best colour images in the day, use one of our daylight LED lamps available from the drop-down.
Camera
Imaging Sensor: 1/3 inch OMNIVISION colour CMOS
Horizontal Resolution: 700 TV lines
CMOS Total Pixels: 628 x 582 (PAL) / 510 x 492 (NTSC)
Scanning Frequency(H): 15.625kHz 15.734kHz
Scanning Frequency(V): 50Hz 60Hz
Angular Field of View: 110 degrees (f=2.8mm)
Minimum Illumination: 3.0Lux (F1.2)/ 0Lux (IR LED on)
Infrared LED: 6EA Invisible IR LED 940nm
Consumption Current: 150 mA
Wireless Frequency: ISM 2.414 - 2.468GHz
Wireless Range: up to 30 metres (clear line-of-sight)
Transmission Power: 10mW
Gain Control: Automatic
Modulation Mode: FM
Bandwidth: 18m
Power: DC 12V, 500mA
Operating Temperature: -10°C ~ +40°C
Operating Humidity: 85%RH
Dimension (WxLxH): 42x35x35mm
Weight: 65g
Receiver
Frequency: ISM 2414 - 2468MHz 4 Channel
Antenna: Omni-directional antenna
Channel: 1-4 (Flip-type switch)
Intermediate Frequency: 480MHz
Frequency Stabilization: +/- 100kHz
Demodulation Mode: FM
Receiving Sensitivity: 85dBm
Video Output: 1Vp-p@75 ohm, S/N>38dB
Power: DC 12V, 500mA
Operating Temperature: -10°C to +40 °C
Operating Humidity: 85%RH
Dimension (WxLxH): 80x68x16mm
Weight: 120g
